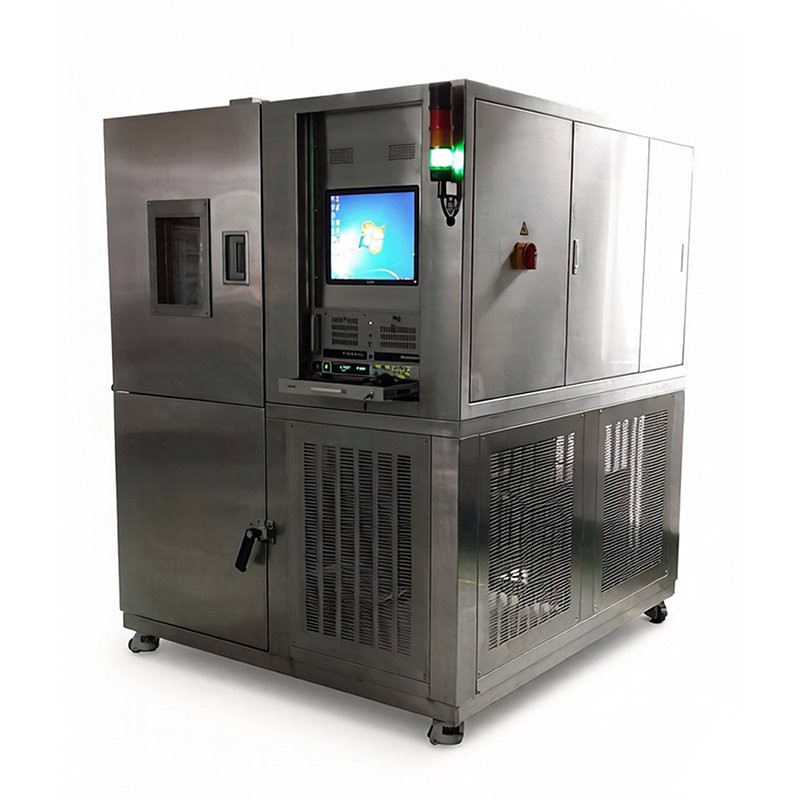

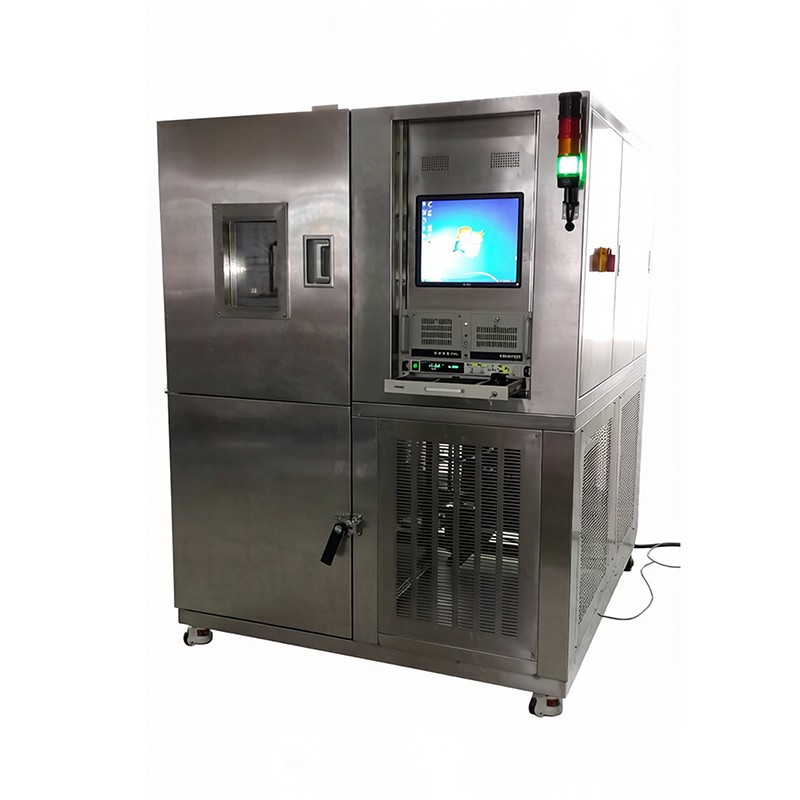

Electronic Components Electrical Performance Testing Equipment

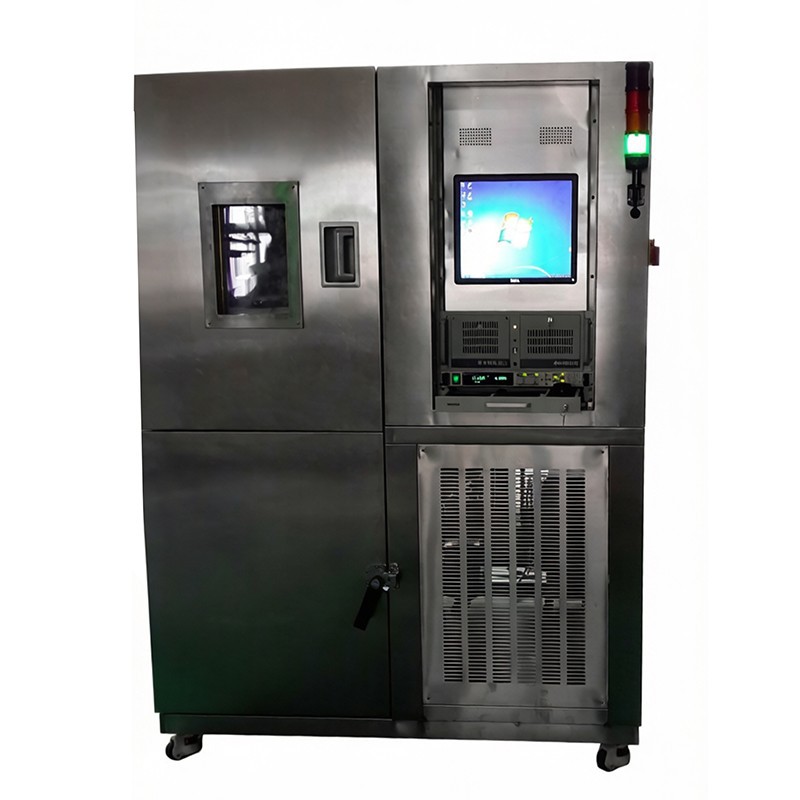

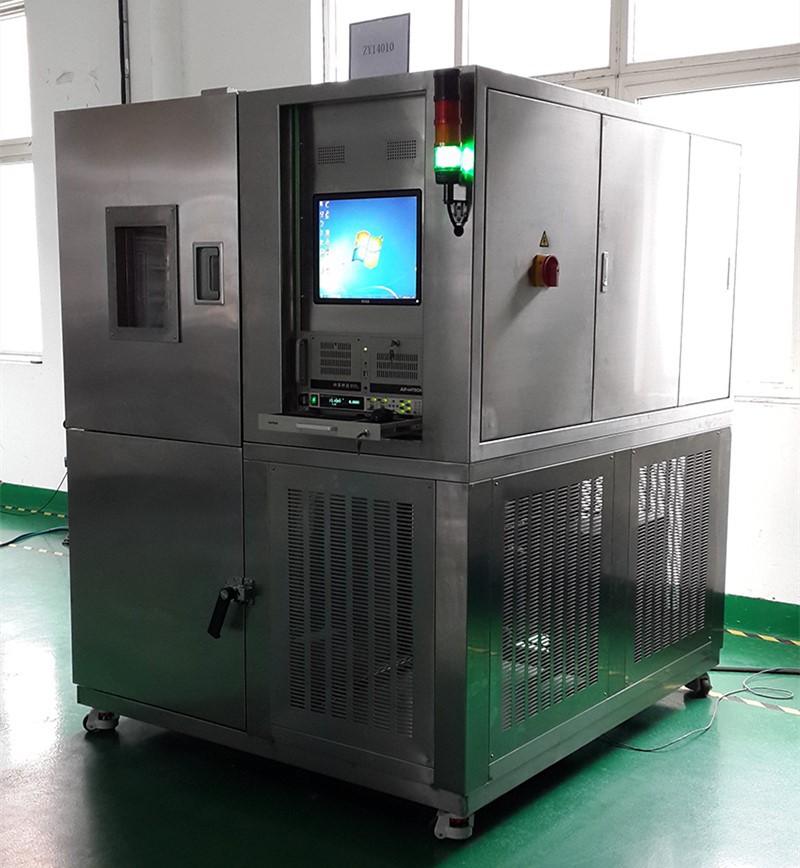

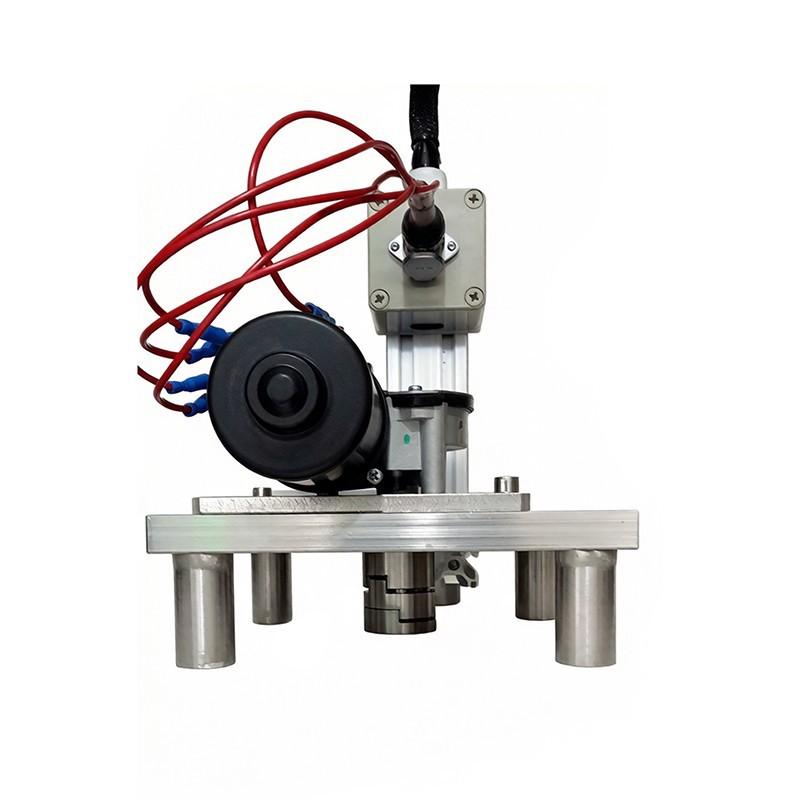

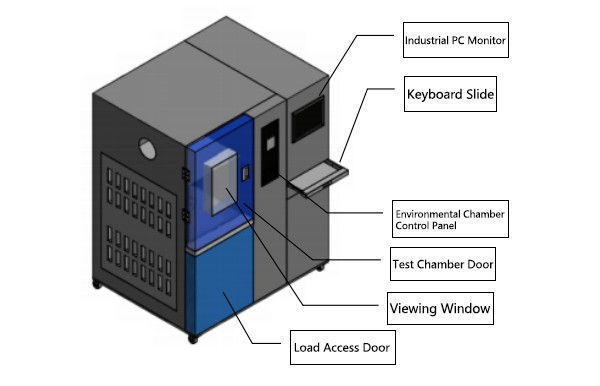

This is a comprehensive motor performance test bench capable of simulating high and low temperature environments from -40°C to +100°C. The system tests motors across all operational conditions automatically: no-load, loaded, and locked-rotor states.

• Measures speed, torque, current, voltage, power, and efficiency in real time.
• Generates performance curves automatically and saves all test data.
• High and low temperature simulation is highly accurate: temperature fluctuation ±0.5°C, uniformity ≤2°C.

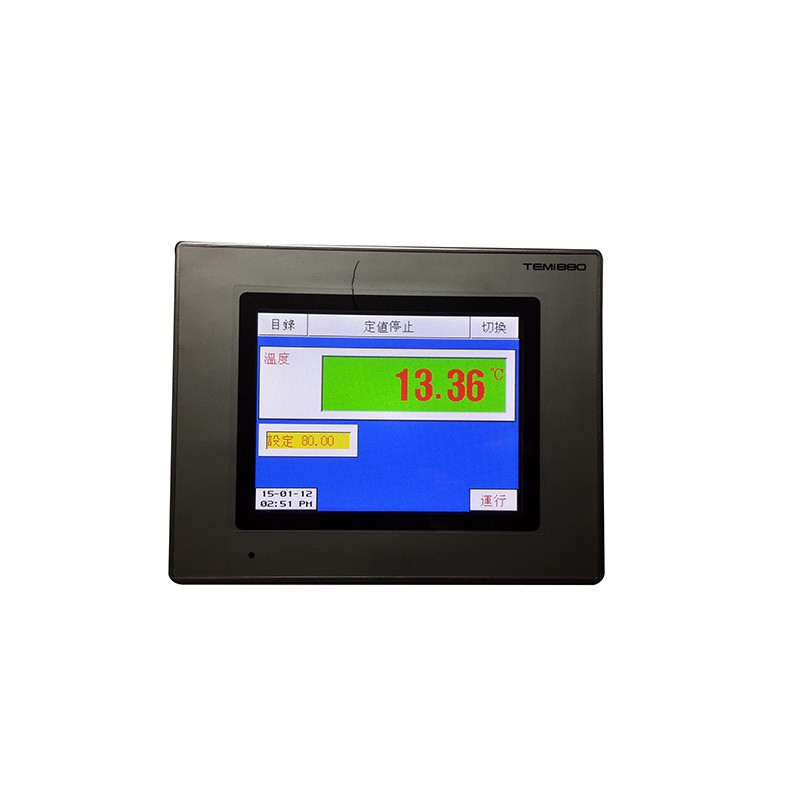

• Uses imported compressors and intelligent temperature control for stable heating and cooling.

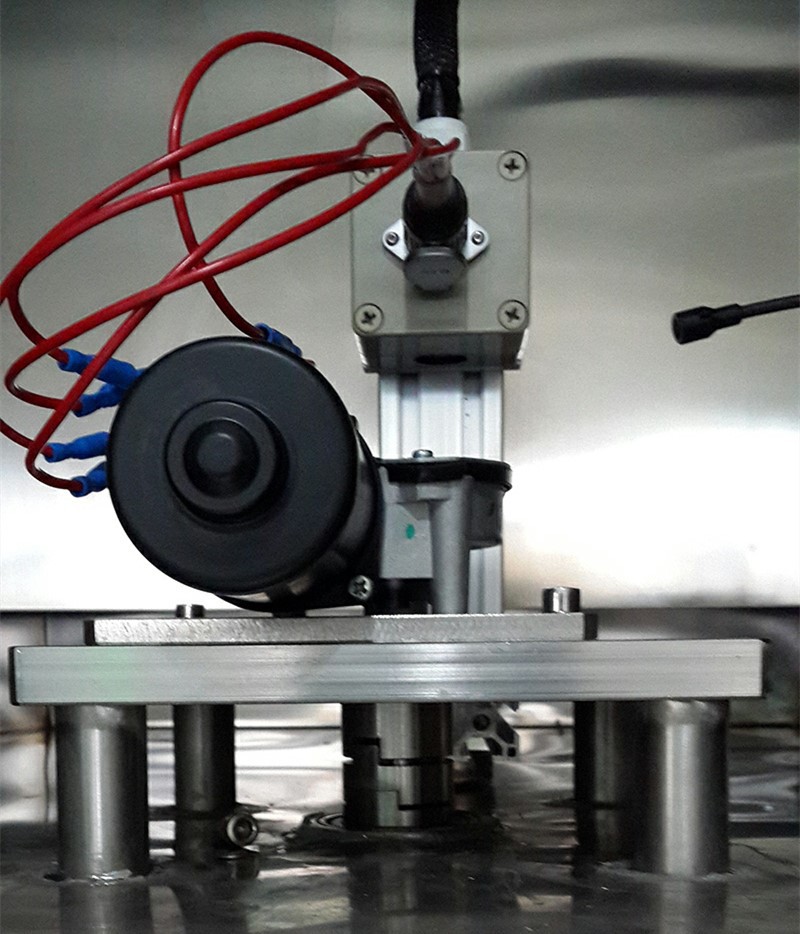

• Supports dual load testing without any tooling changes.

• Working load range: 0.5–12 Nm with 0.5% accuracy.
• Locked rotor load: 3–100 Nm, no tooling change required.

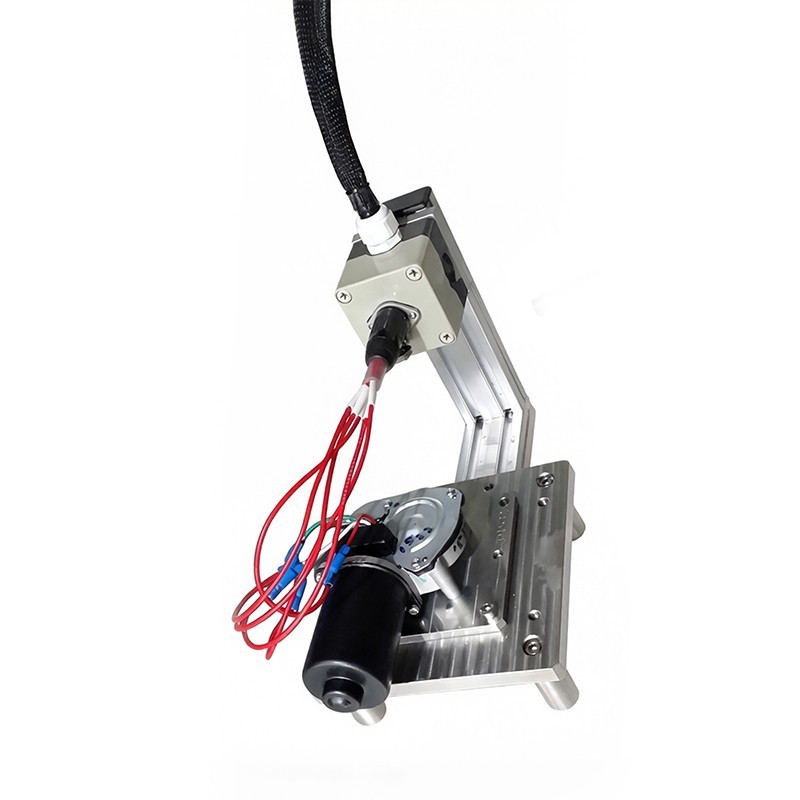

• Uses an imported torque sensor: 100 Nm capacity, 0.1% full scale accuracy, 5000 RPM.
• Noise testing is fully functional under extreme temperatures. Microphone range: -40°C to +100°C, capturing and recording noise in real time, playback enabled, and builds a noise database.

• Multiple safety protections: over-temperature, over-pressure, over-load, and over-heat.

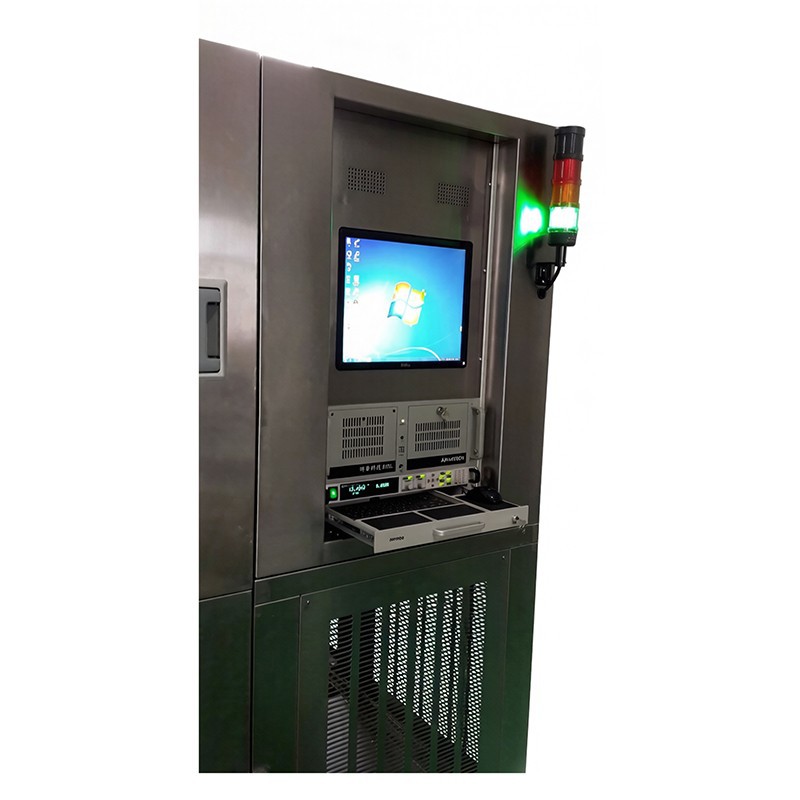

• Control system: Siemens PLC integrated with an Advantech industrial computer.
• Power supply: ITECH programmable DC supply, 0–40 V, 50 A.
