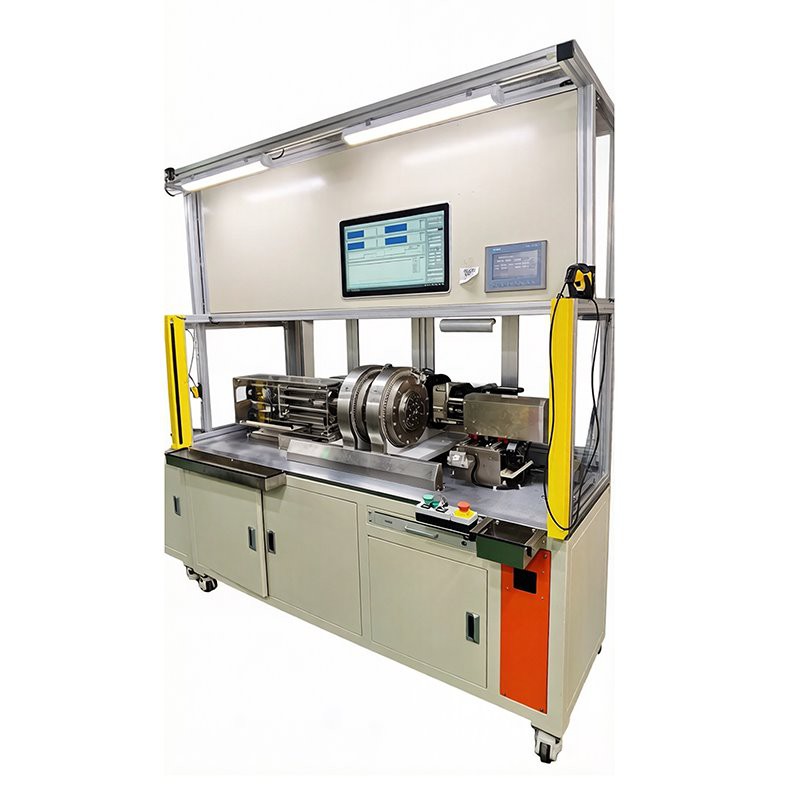

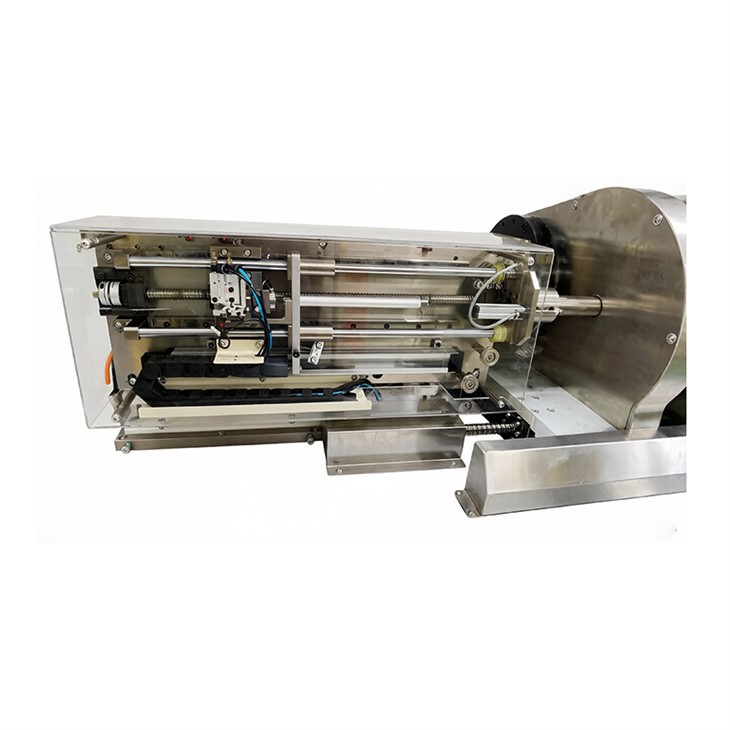

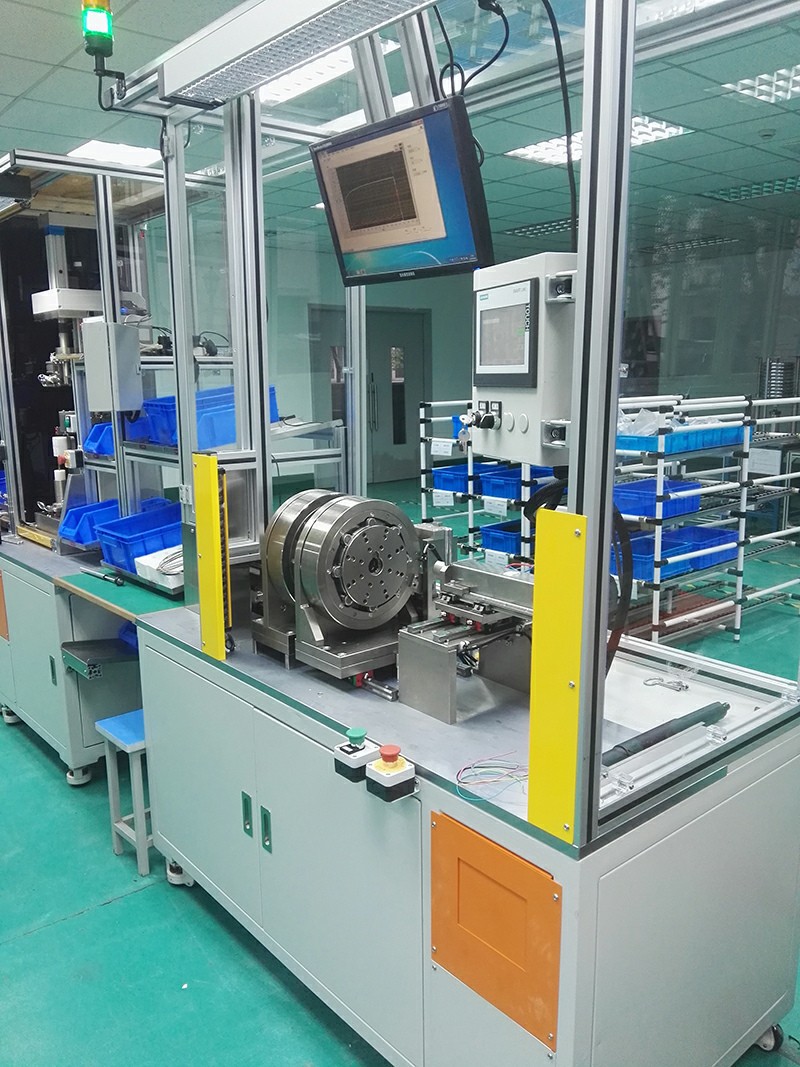

Electric Strut Crimping Machine

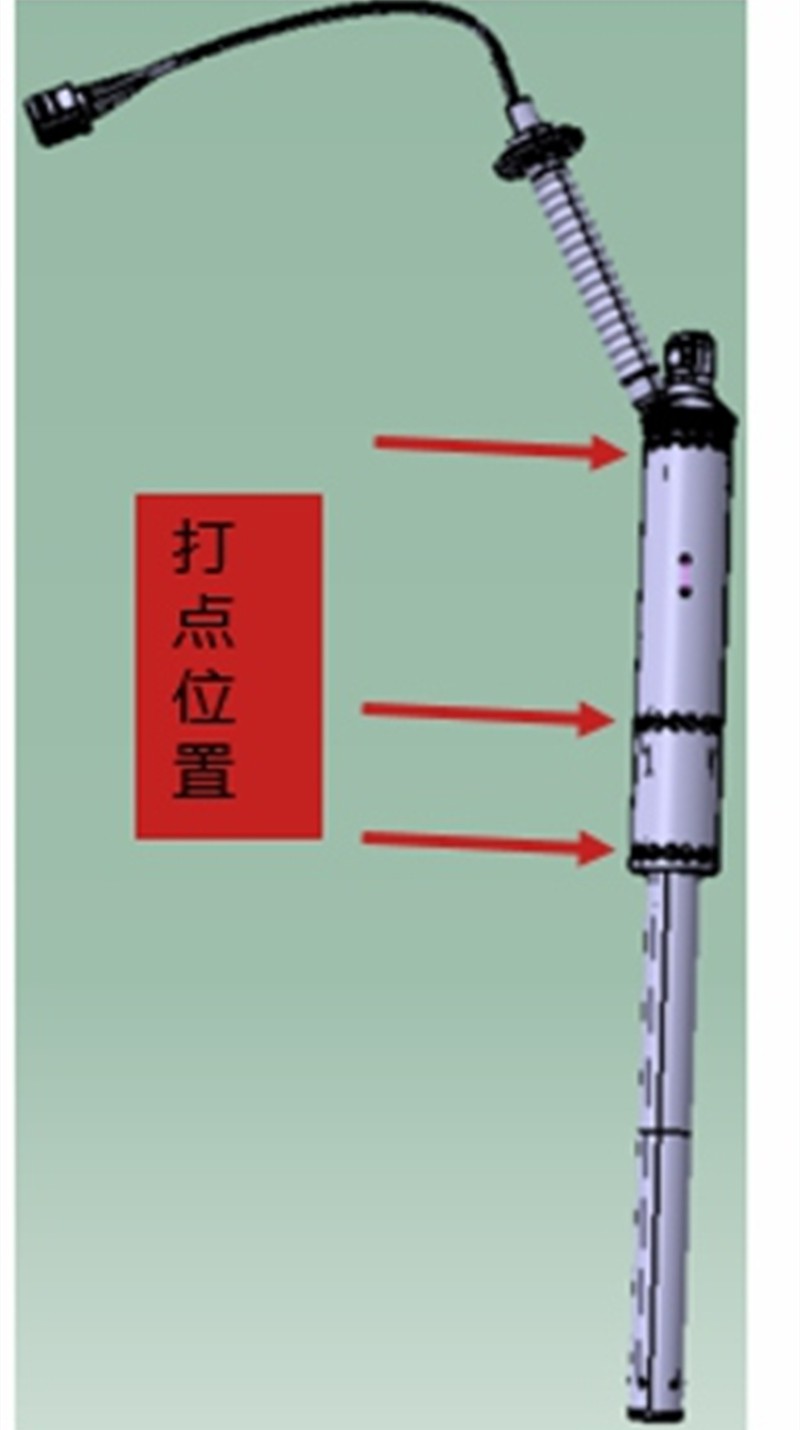

This machine performs three operations: assembly, crimping, and dimpling. First, the inner support pipe QR code is scanned, followed by the motor end connector QR code. The system binds these two parts together. The machine then automatically assembles the gearbox connector seat, rubber pad, motor connector, main tube, and seal pad. Servo control ensures precise dimple position and depth, strictly following drawing specifications. After dimpling, each part is inspected to ensure there are no scratches, deformations, or misalignments. The Electric Strut Crimping Machine will alarm if any part is missing or incorrectly placed.

If assembly is incorrect, the machine will not proceed to the next step. Similarly, if dimpling is out of tolerance, an alarm is triggered. Multiple layers of error-proofing prevent defective products from passing. This highly concentrated process previously required two or three separate machines; now, one machine completes all steps without moving parts between stations, greatly improving efficiency.
QR code traceability meets automotive company requirements. Every part's QR code is scanned, and all data is automatically recorded for future review. This machine is designed for automotive electric tailgate struts. Core functions include QR code binding, automatic component assembly, servo-controlled dimpling and crimping, and error-proofing detection. Control is via servo system, and error-proofing is performed through automatic detection of missing, extra, or incorrect parts.
